LED Mirror Cabinet

Description

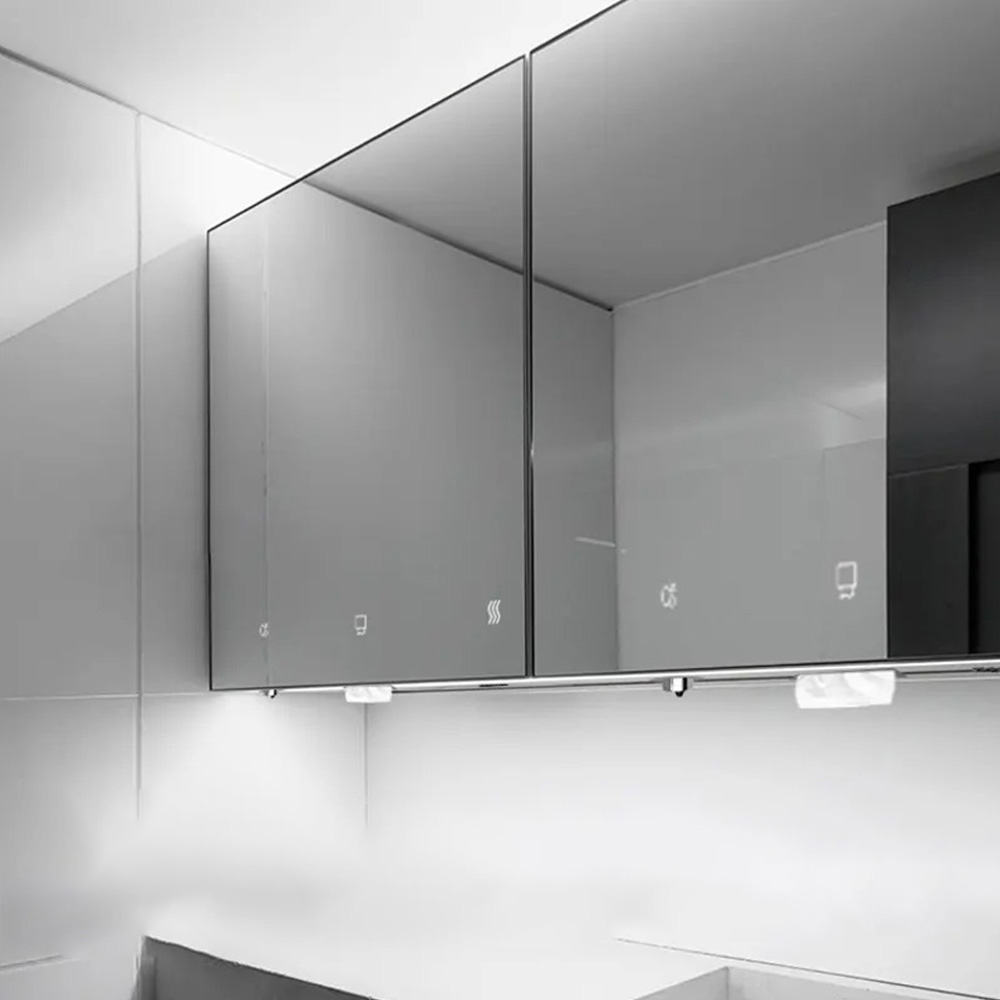

LED Mirror Cabinet – Integrated Touchless Sanitary Solution

All-in-One Behind-the-Mirror Bathroom System

Introducing the Behind-the-Mirror Bathroom Solution, a revolutionary all-in-one touchless hygiene system designed to redefine modern commercial washrooms. This advanced LED mirror cabinet seamlessly integrates essential sanitary functions behind a sleek mirror, delivering unmatched hygiene, space efficiency, and contemporary design.

Crafted from 304-grade stainless steel and premium mirror glass, the cabinet combines durability with refined aesthetics, making it ideal for high-traffic public and commercial environments.

Integrated 4-Function Sanitary System

This intelligent cabinet combines the following functions in one concealed unit:

• Mirror with LED illumination

• Touch-free electronic faucet

• Automatic soap dispenser

• Paper towel dispenser

• High-speed hand dryer

All components are sensor-activated, ensuring fully touchless operation for enhanced hygiene and reduced cross-contamination.

Premium Design & Construction

• Material: SS-304 Stainless Steel + Mirror Glass

• Finish: Matte black melamine interior with stainless steel detailing

• Mirror: 4 mm thick glass with illuminated LED pictograms

• Vandal-resistant construction with DELABIE security key

• Internal storage shelf for maintenance convenience

Smart Touch-Free Technology

• Infrared sensor activation for soap dispenser and faucet

• LED pictograms guide users clearly and intuitively

• Anti-blocking system stops operation automatically during misuse

• Duty flush system ensures hygiene after periods of inactivity

Advanced Component Features

Automatic Soap Dispenser

• No-waste pump system

• Large 5-litre tank capacity

• Compatible with vegetable-based liquid soap (max. viscosity 3,000 mPa·s) or foam soap

Electronic Basin Tap

• Reduced stagnation valve

• Flow rate preset at 3 LPM @ 3 bar (adjustable 1.4–6 LPM)

• Scale-resistant flow straightener

• Adjustable sensor angle (±10°)

• Integrated stopcock

Paper Towel Dispenser

• Dispenses one sheet at a time

• Capacity: 500 sheets

• Dimensions: 120 × 275 × 360 mm

High-Speed Hand Dryer

• Integrated behind the mirror

• Powerful, hygienic, and space-saving

• LED basin illumination during operation

Easy & Flexible Installation

• Single electrical connection for all components (230V / 50–60Hz)

• Water connection from top or inside the cabinet

• Water inlet: M3/8"

• Concealed fixings included (stainless steel screws for concrete or reinforced wood)

• Adjustable hinges for precise alignment

• Multiple cabinets can be installed side-by-side to create a continuous mirror wall

Available Sizes

• 900 (H) × 900 (W) × 146 (D) mm

• 900 (L) × 655 (W) × 146 (D) mm

Ideal Applications

Airports, hospitals, corporate offices, shopping malls, hotels, luxury commercial washrooms, stadiums, and other high-traffic public facilities.
